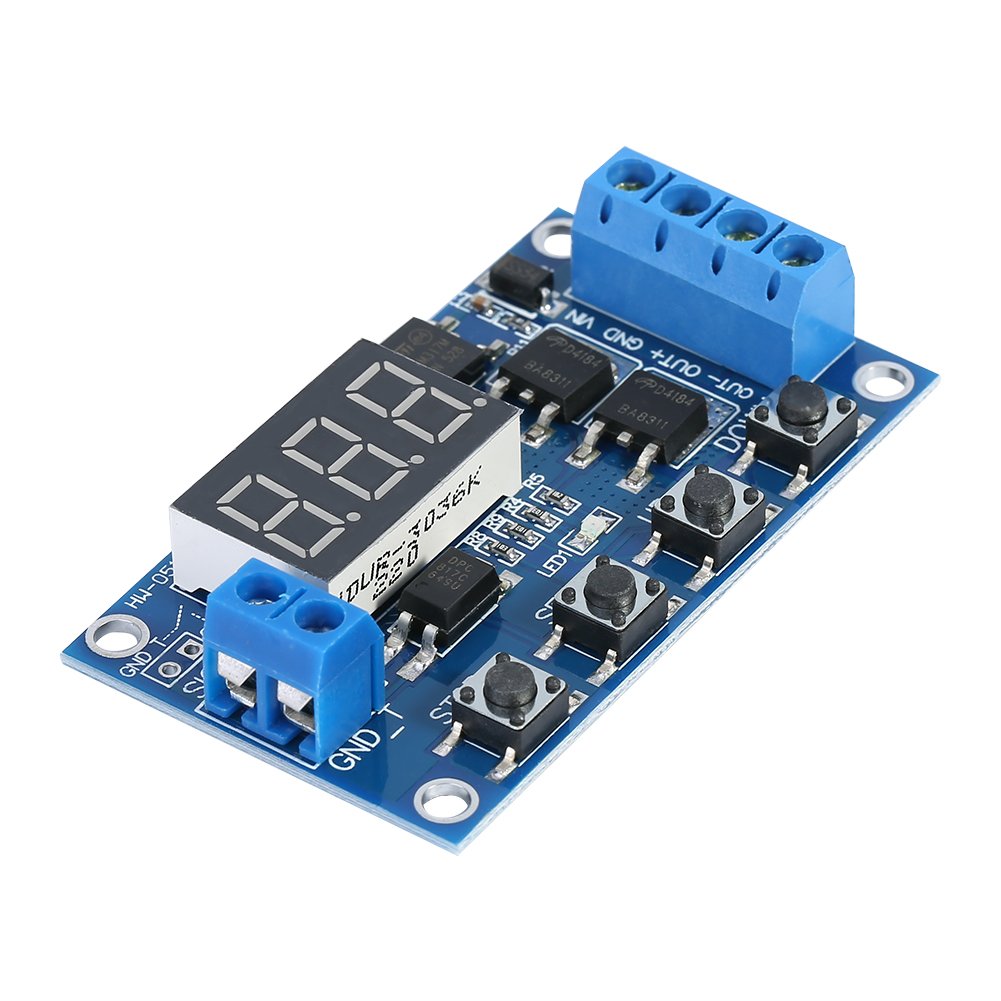

5V-36V Adjustable Timer Relay Module with LED Display - DC Trigger Cycle Delay Switch for On/Off Control | Perfect for Home Automation, Industrial Equipment, and DIY Electronics Projects
Free shipping on all orders over $50
7-15 days international
24 people viewing this product right now!
30-day free returns
Secure checkout
14100468
Description

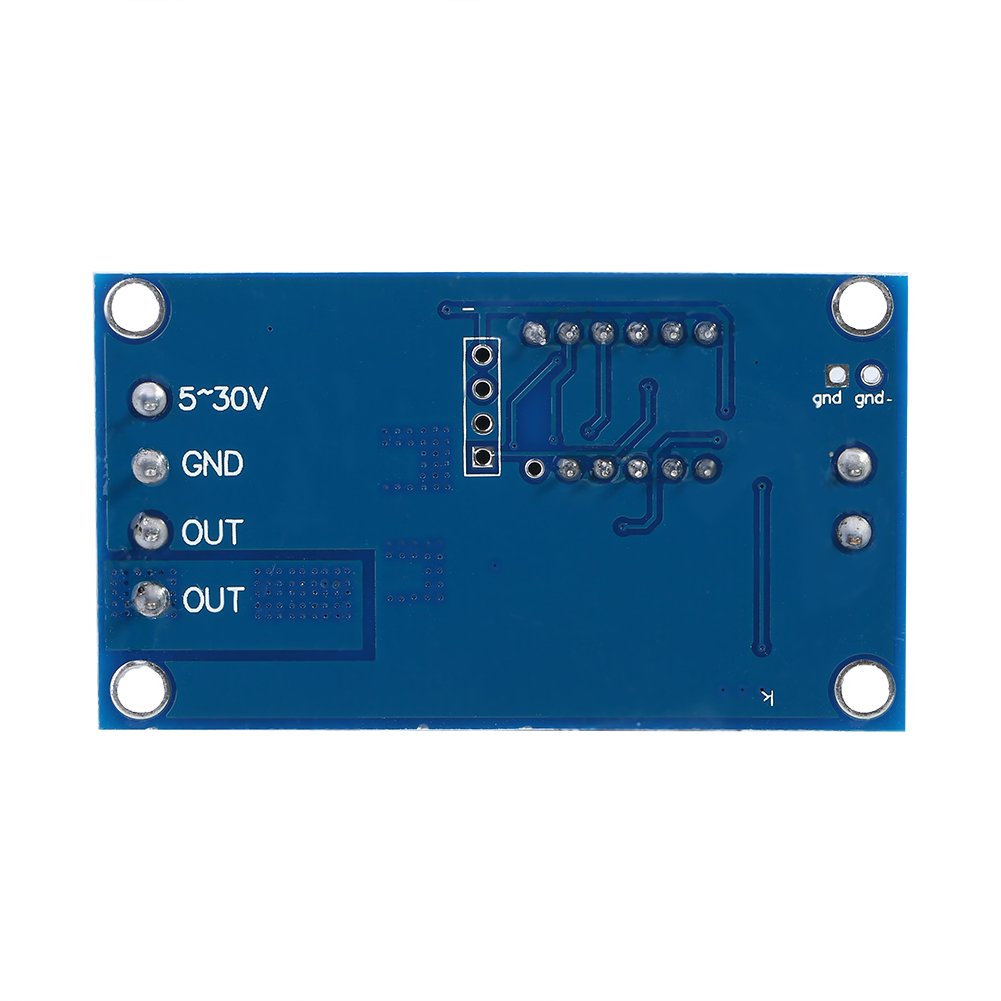

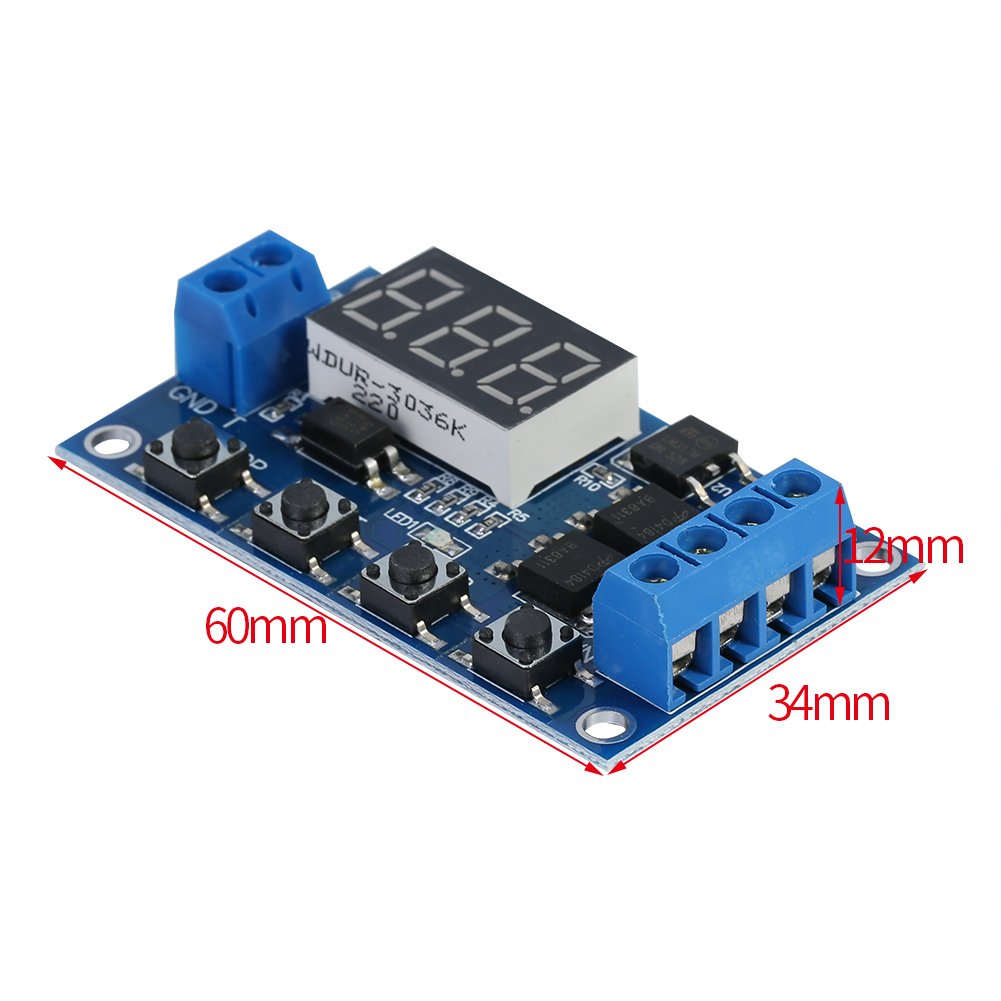

Specifications: Voltage: DC 5V~36V. Trigger Signal Source: High voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent Current: 20mA Operating Current: 50mA Working Temperature: -40℃~85℃ Clocking (Time Delay) Range: 0.1seconds to 999minutes Size: 60*34*12mm / 2.36*1.33*0.47" Package Includes: 1 x Timer Switch Module
Features
Fast high frequency switching circuit --- To achieve fast high frequency turn-on and off circuit, an unlimited number of switching times. No noise was made during turning on/off, no spark, and no electromagnetic interference.
No electromagnetic interference --- Compared to normal electromagnetic relay modules, it has a longer service life. No noise was made during turning on/off, no spark, and no electromagnetic interference.

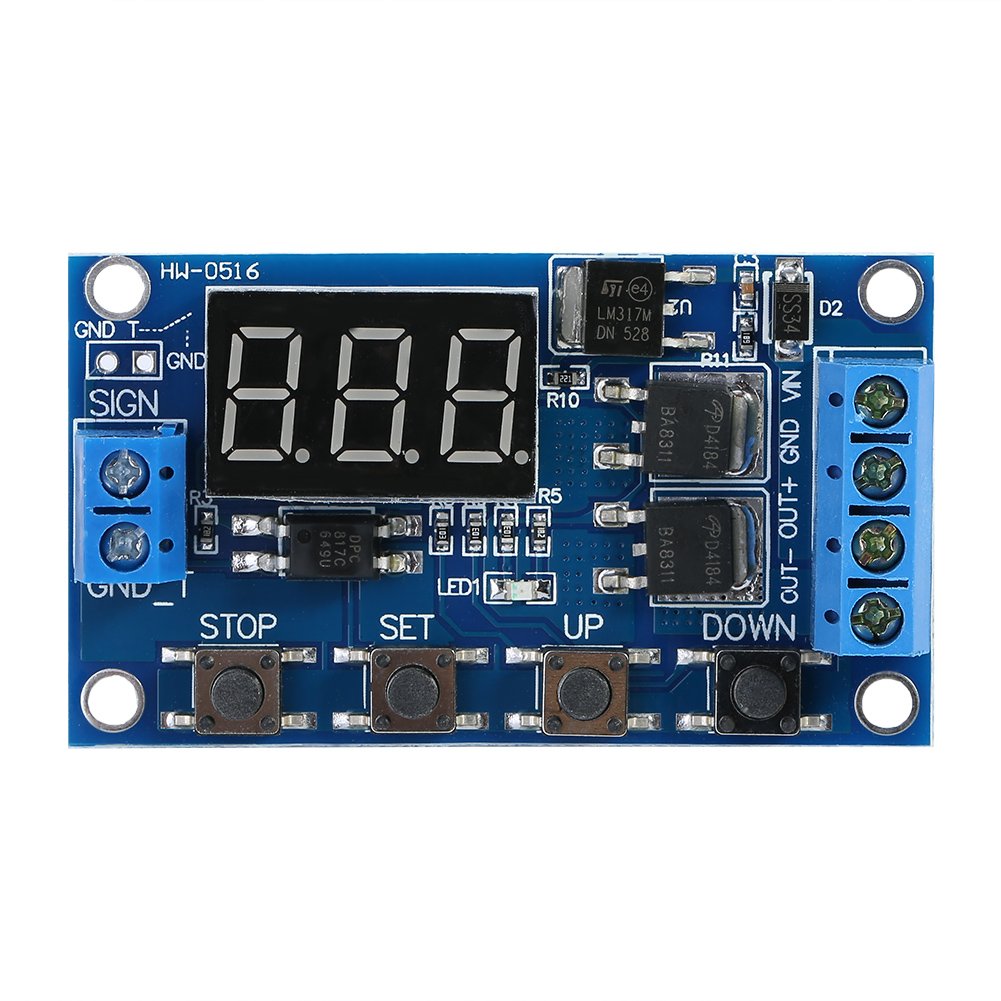

Dual-MOS in parallel active output --- lower inner resistance, larger current, strong power; at room temperature, operating current is up to 15A, power up to 400W, that can be used for most equipment.
Wide voltage input from 5V to 36V --- normally used for controlling DC motors, lights, LED strips, micro-pumps, solenoid valves, etc., very convenient.
It has an emergency stop function --- "STOP" button and reverse input protection. Automatically enter sleep mode and shut off display if no operation in 5 minutes, and will be wake up by pressing any button. All parameter settings will be saved automatically if there is a power failure.
