Description

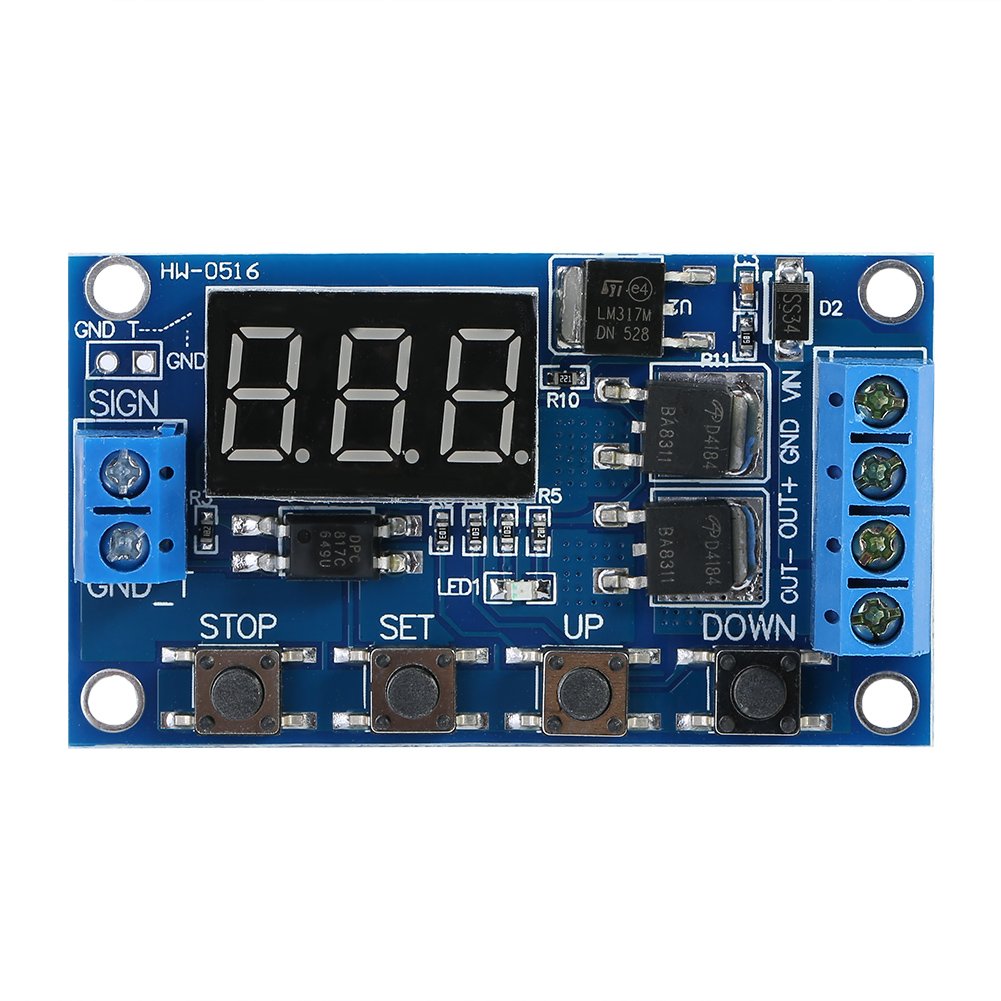

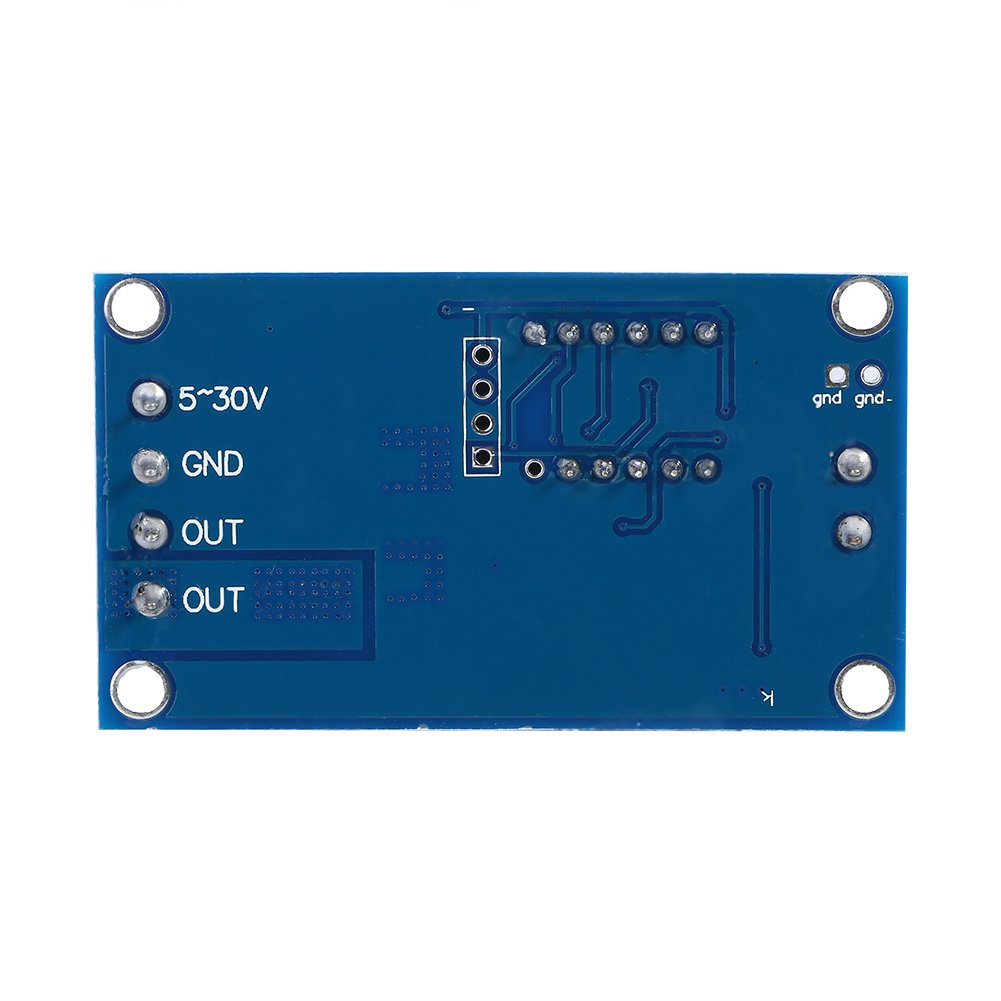

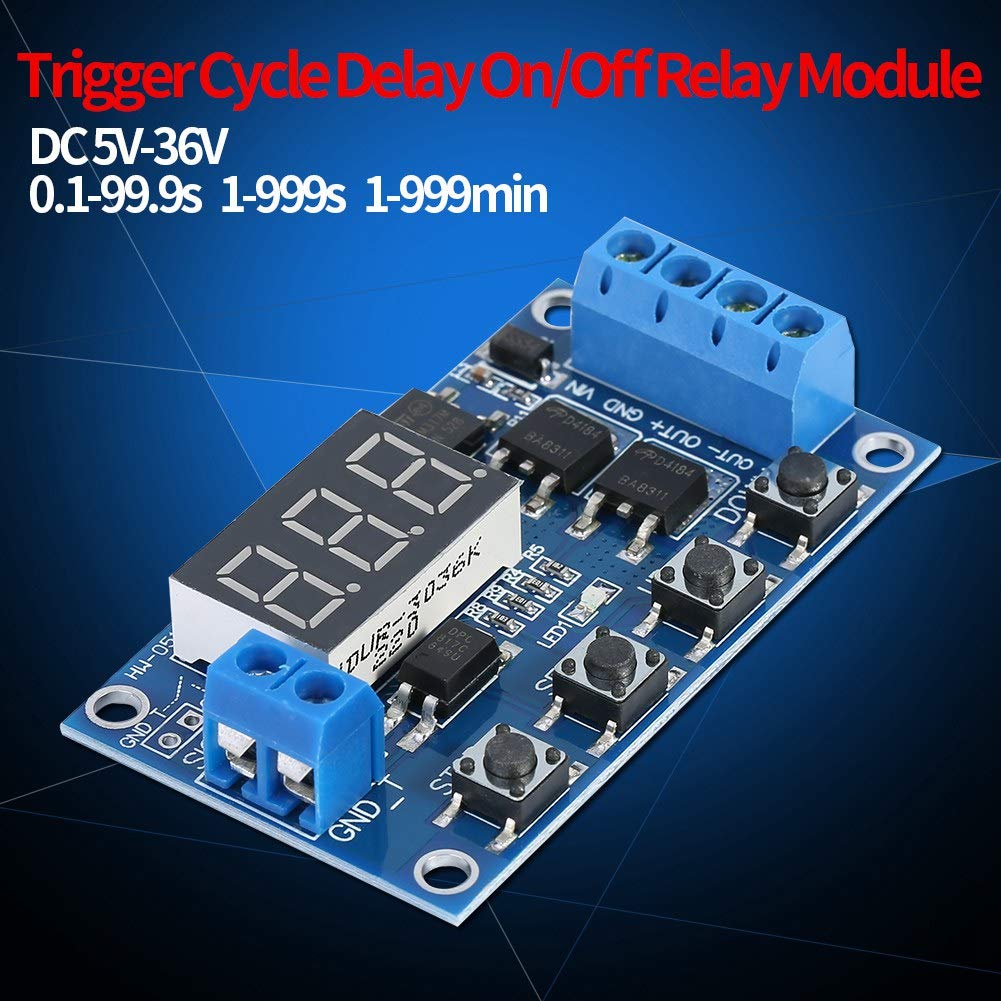

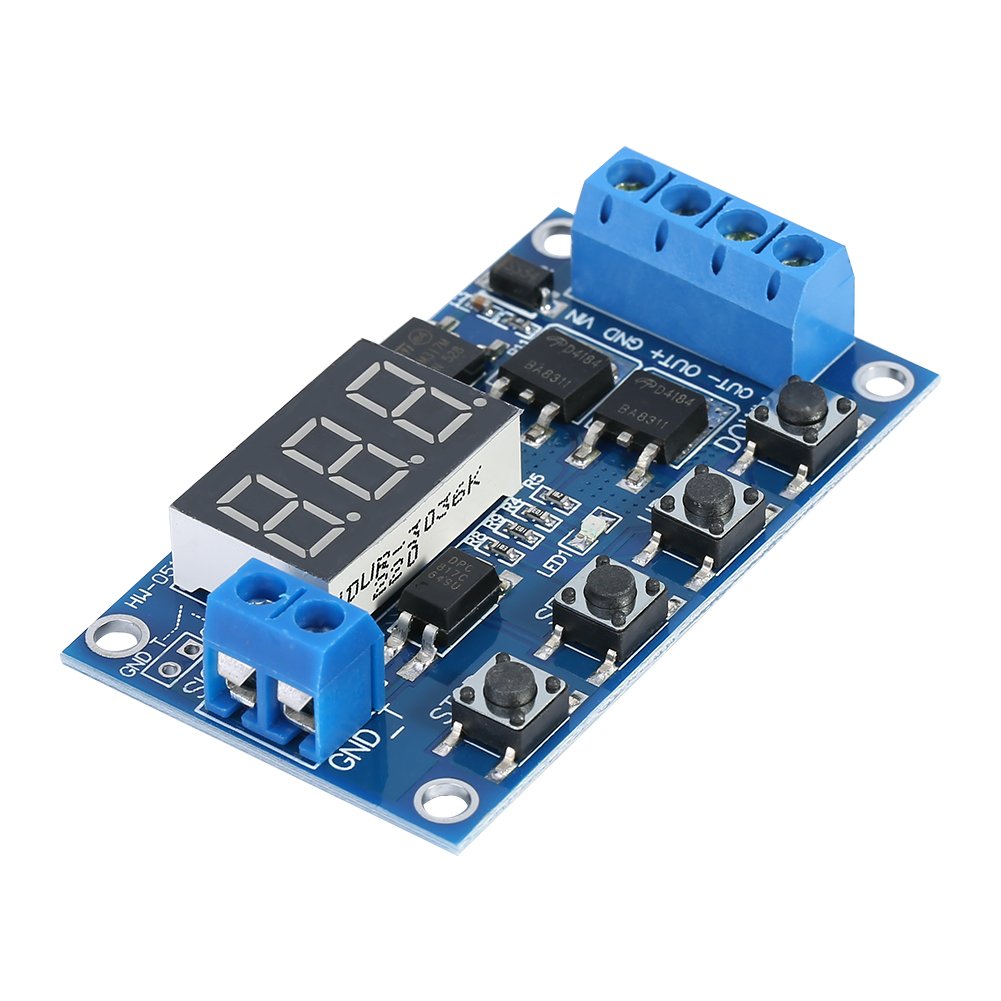

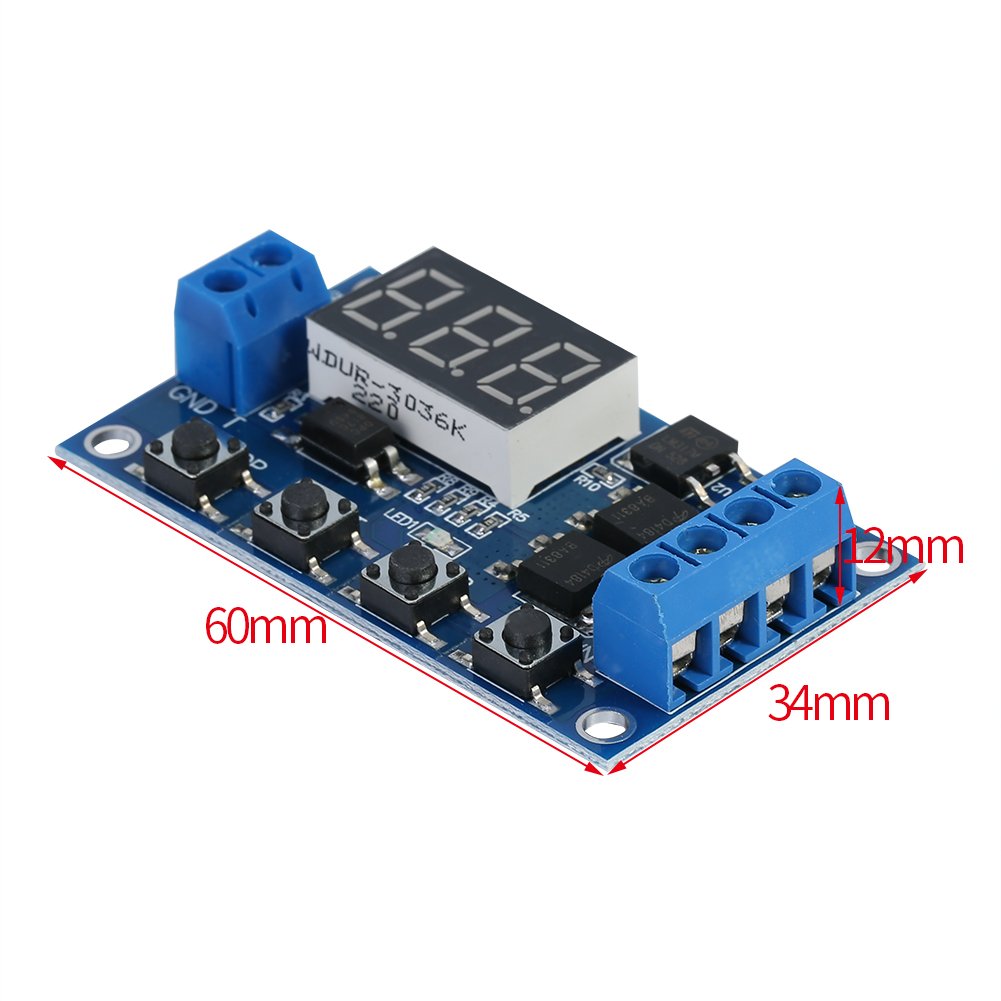

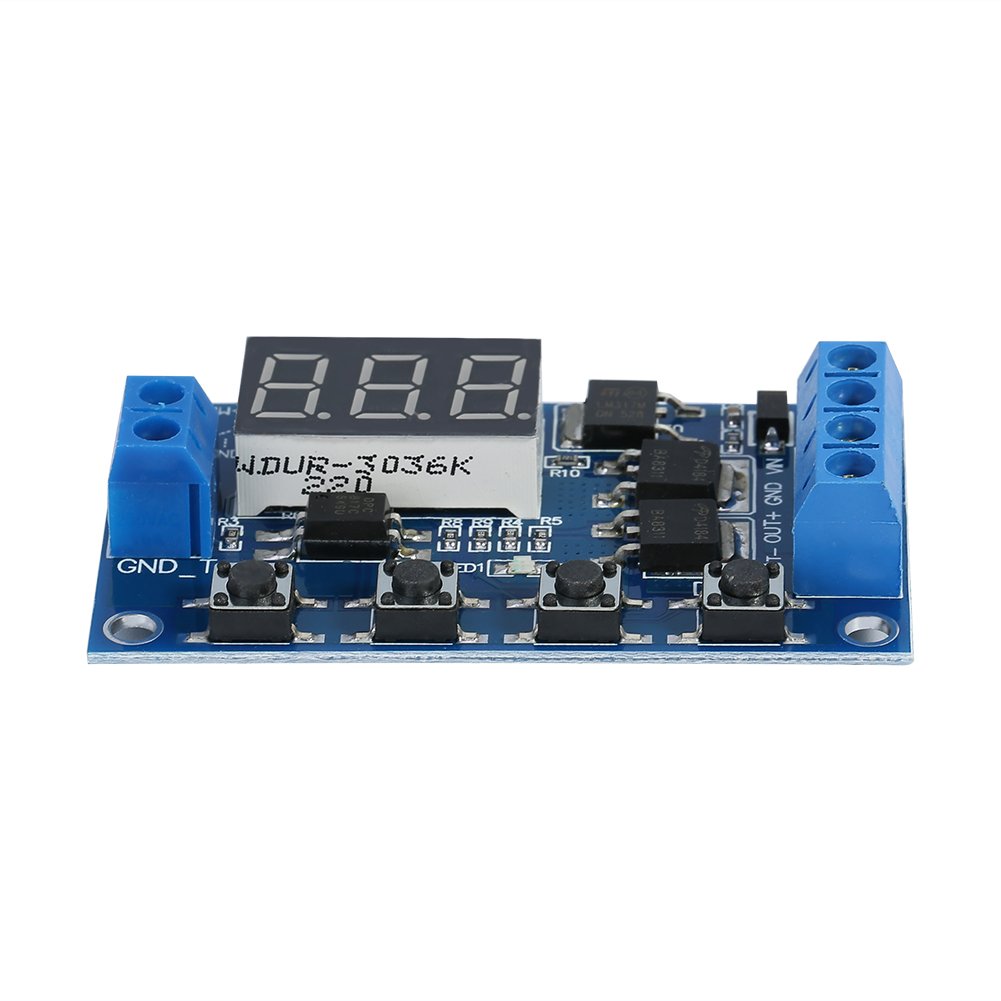

Specifications: Voltage: DC 5V~36V. Source: High voltage level (3.0V~24V), ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent Current: 20mA Operating Current: 50mA Working Temperature: -40℃~85℃ Clocking (Time Delay) Range: 0.1seconds to 999minutes Size: 60*34*12mm / 2.36*1.33*0.47" Note: 1. The module is an active output, the output voltage equal to the input voltage. 2.'DC + 'and' load + ' are internally shorted(connected), but' DC- 'and' load - ' cannot be shorted, otherwise the load cannot be controlled on and off, which is equivalent to load being powered on always. Package Includes: 1 x Timer Switch Module
Features
To achieve fast turn-on and off circuit, an unlimited number of switching times
No noise was made during turning on/off, no spark, and no electromagnetic interference
Compared to normal electromagnetic relay modules, it has a longer service life
Dual-MOS in parallel active output, lower inner resistance, larger current, strong power; at room temperature, operating current is up to 15A, power up to 400W, that can be used for most equipment
Wide voltage input from 5V to 36V, normally used for controlling DC motors, lights, LED strips, micro-pumps, solenoid valves, etc., very convenient
