12V DC Programmable Timer Switch with LCD Display - Digital Electronic Time Relay for Indoor Use (White, 1-Pack) - Perfect for Home Automation, Lighting Control, and Appliance Scheduling

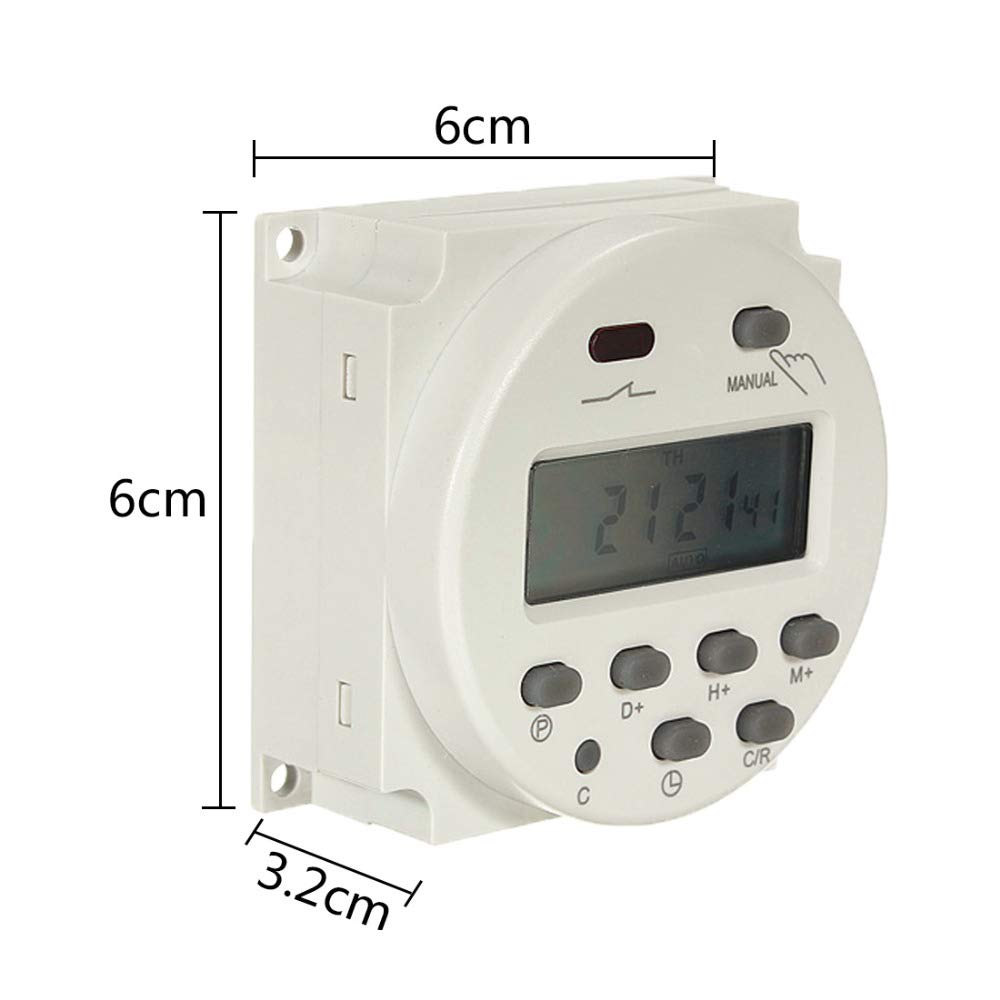

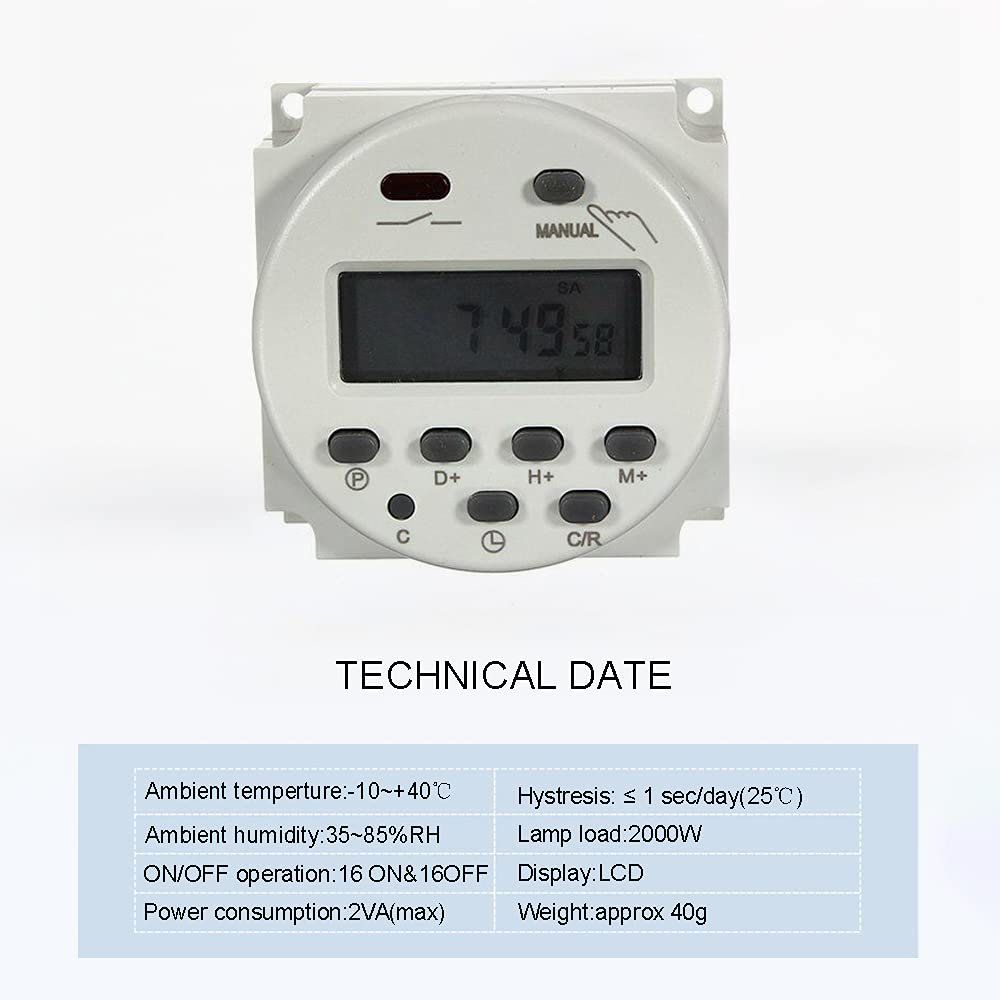

Specification:Display device: LCDPower consumption:<1WProduct net weight: 80G Working temperature: -20 ° C ~ +55 ° CWorking voltage: 220-240VAC 50-60HzCustom voltage: 12V, 24V, 36V, 48V, 110V, 380VTiming range: 1 minute to 168 hoursTravel time error: 1S/24H 25°CNumber of travels: 16 switches (day/week)Internal battery: 1.2V/40mA (rechargeable battery)Dimensions: 60mmx60mmx32mm (height*width*thickness)According to the installation method: screw, connector connection meets the standard: GB/T14536.1Instructions:1. Calibration of Beijing time Press the “Clock” button and press the “Minute”, “Time” and “Week” buttons to adjust the Beijing time.2, timing settingsA. Press the “Timer” button and the word “1 ON” is displayed at the bottom left of the display (indicating the first time). Then press the “minute”, “hour”, “week” buttons to enter the desired opening time.B. Press the “Timer” button and the word “1 OFF” is displayed at the bottom left of the display (indicating the first off time). Then press the “minute”, “hour” and “week” keys respectively to enter the desired closing time.C. Continue to press the “Timer” button, and the lower left of the display will be displayed in sequence (2 ON, 2 OFF...16 ON, 16 OFF). Refer to steps A and B to set the switching time. If you only need to set it on and off once, you must press the “Cancel/Resume” button to cancel the time set by them.D. Press the “Set” button, and then press the “Week” button to set the same cycle mode with the same daily, different daily, Monday to Friday, Monday to Saturday, or Saturday to Sunday.Package:1 x Programmable Timer Switch
