12V DC Timer Relay Switch Module with LED Display - Adjustable Countdown & Delay Turn Off for Smart Home, DIY Projects, and Automation Control
Free shipping on all orders over $50
7-15 days international
13 people viewing this product right now!
30-day free returns
Secure checkout
93612642
Description

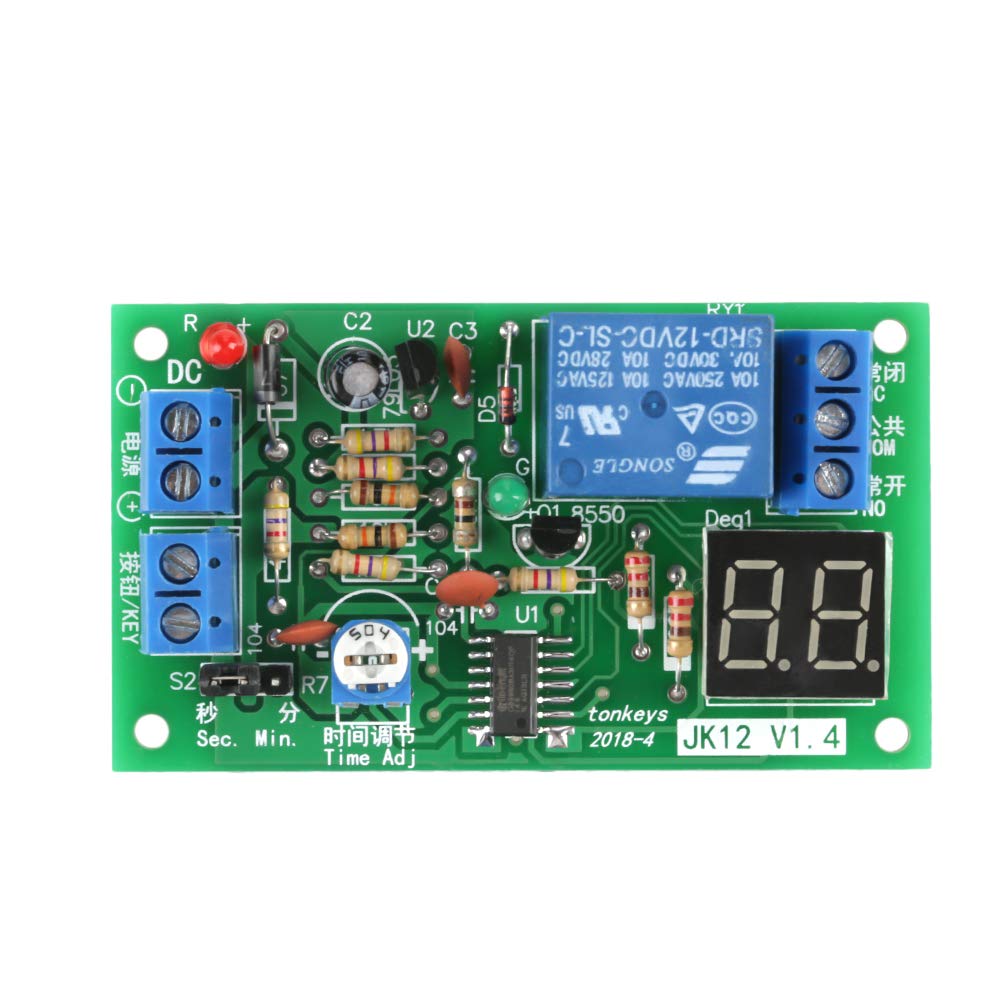

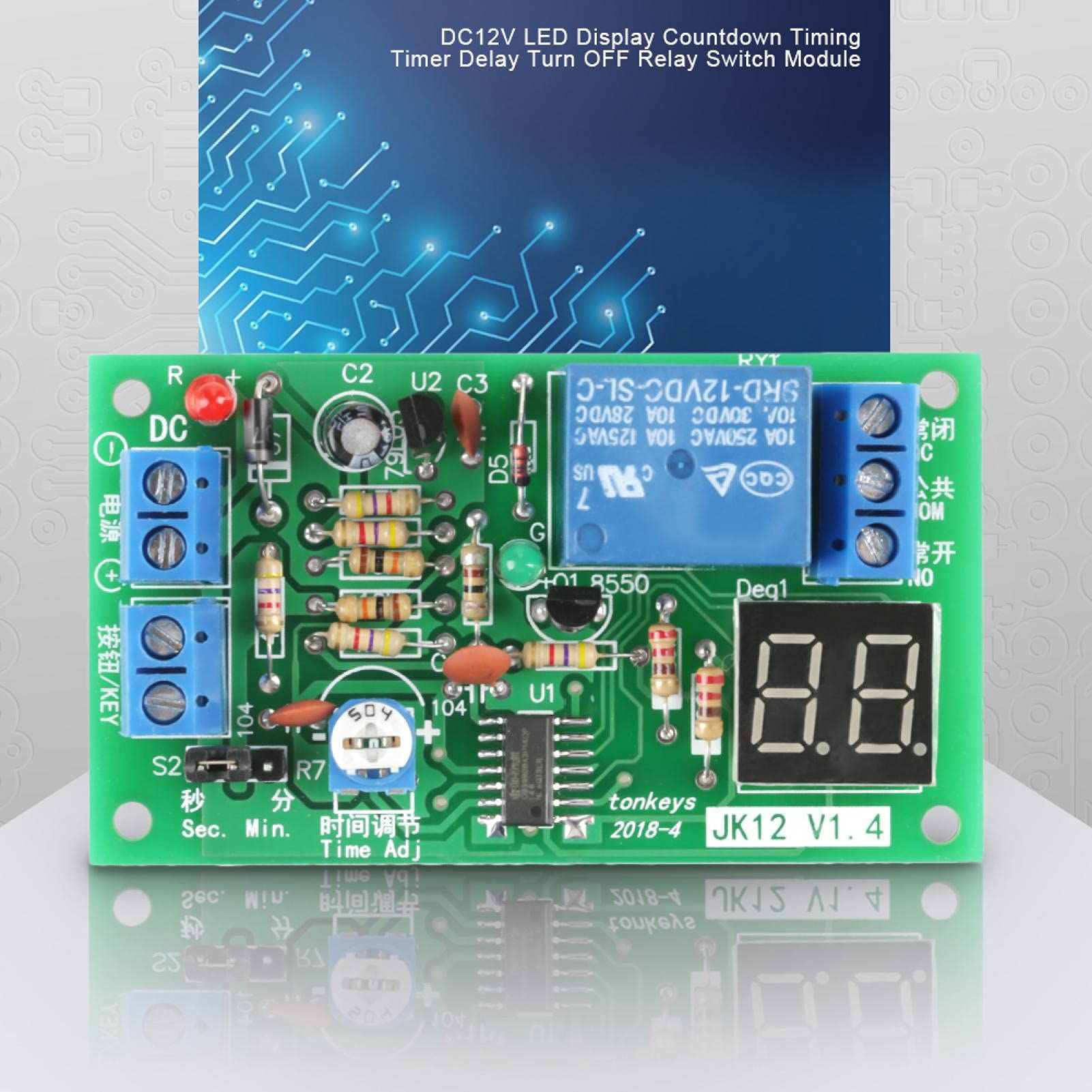

Features: It is a timer relay countdown off module with high precision, stable and reliable performance.Trigger to connect, and will disconnect after delay time; if trigger during delay time, it will disconnect immediately.Normally the module will start to work when triggered, if you need module to work immediately after power on, connect 2 terminals of trigger.There is a wide time range, the delay time is adjustable from 1 second to 99 seconds, or 1 minute to 99 minutes; use a jumper to select second/minute.Designed with a LED display that will show the delay time. Package Includes: 1 x Timer Relay Module Specifications: Voltage: D12VLoad Capacity: 10A 250V AC; 10A 30V DCDelay Time: 1~99Sec./1~99Min.(adjustable)Size: 70 x 40 x 18mm / 2.75 x 1.57 x 0.7"Quantity: 1
Features

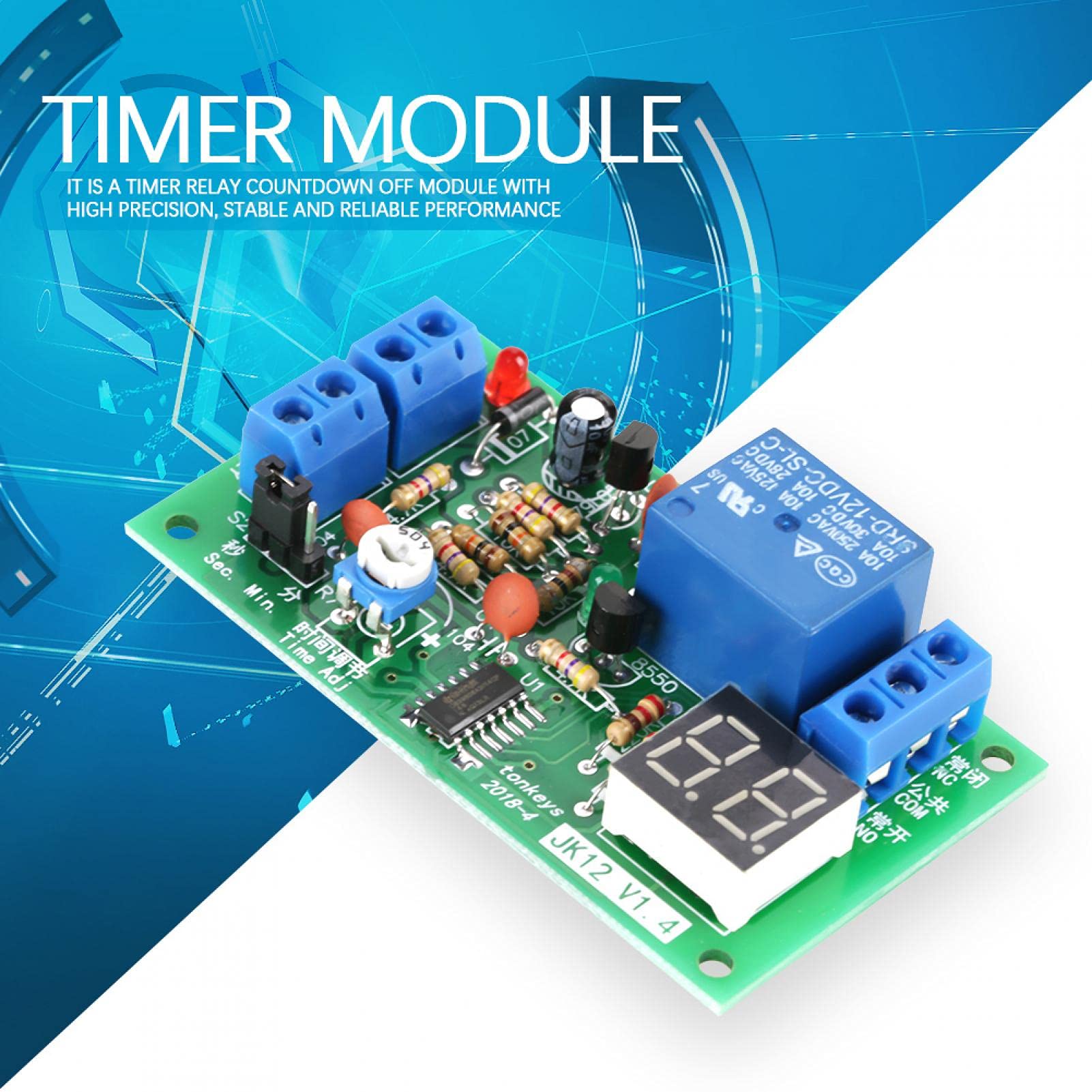

Timer Relay Countdown Off Module It is a timer relay countdown off module with high , stable and performance

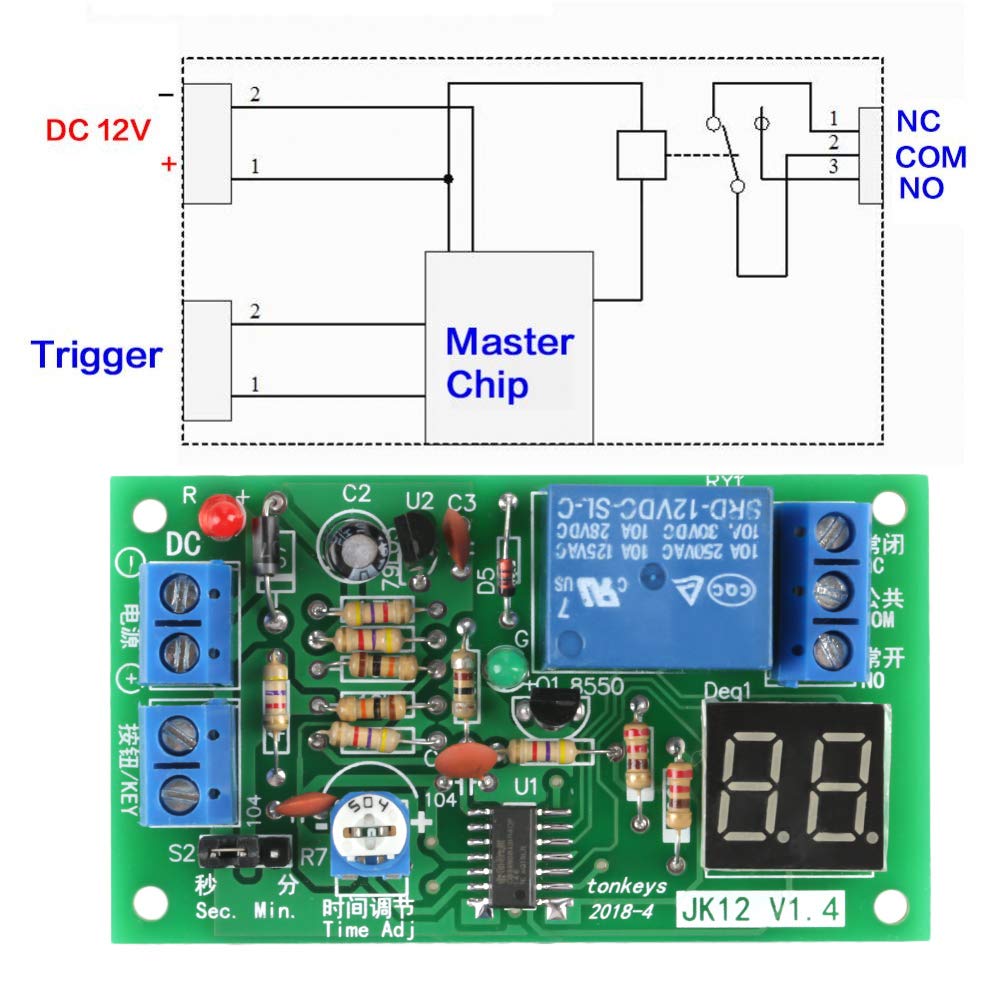

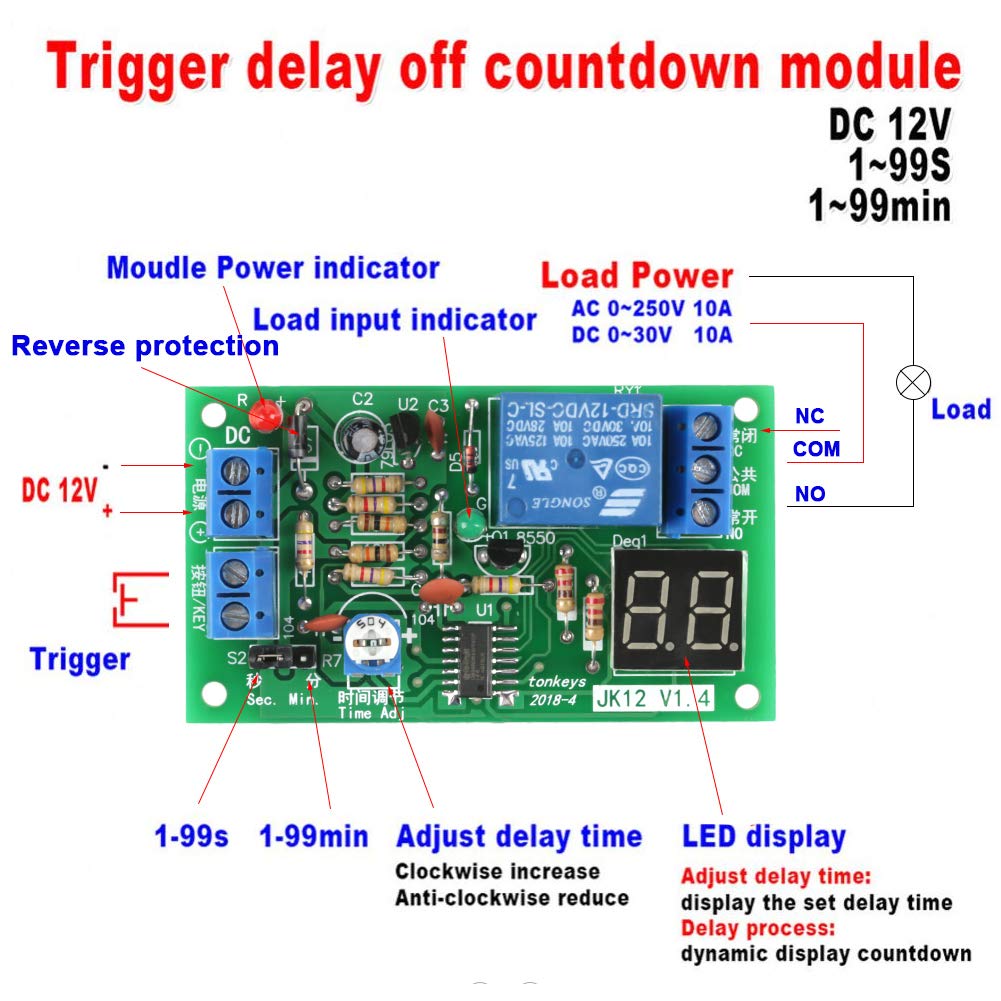

How it Works to connect, and will disconnect after delay time; if during delay time, it will disconnect immediately
Please Note Normally the module will start to work when triggered, if you need module to work immediately after power on, connect 2 terminals of
Wide Time Range There is a wide time range, the delay time is adjustable from 1 second to 99 seconds, or 1 minute to 99 minutes; use a jumper to select second/minute

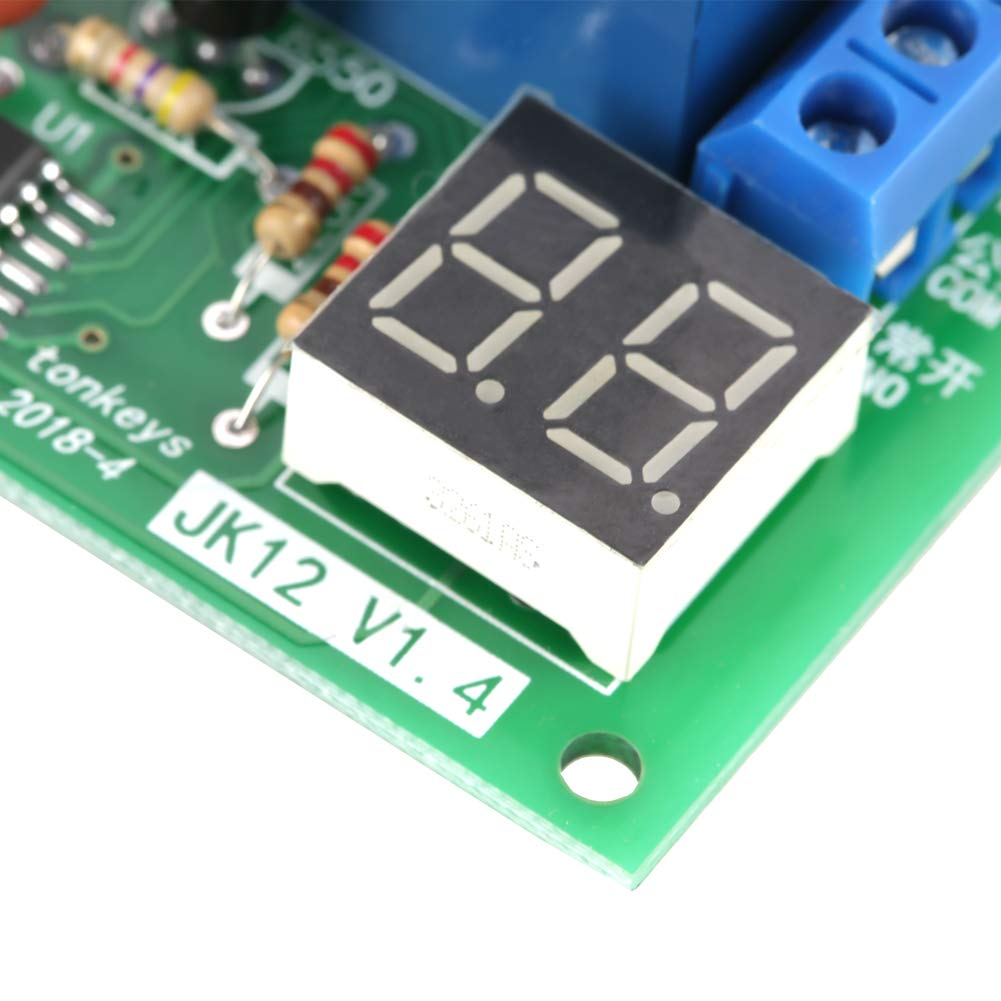

DC12V LED Display Designed with a LED display that will show the delay time
