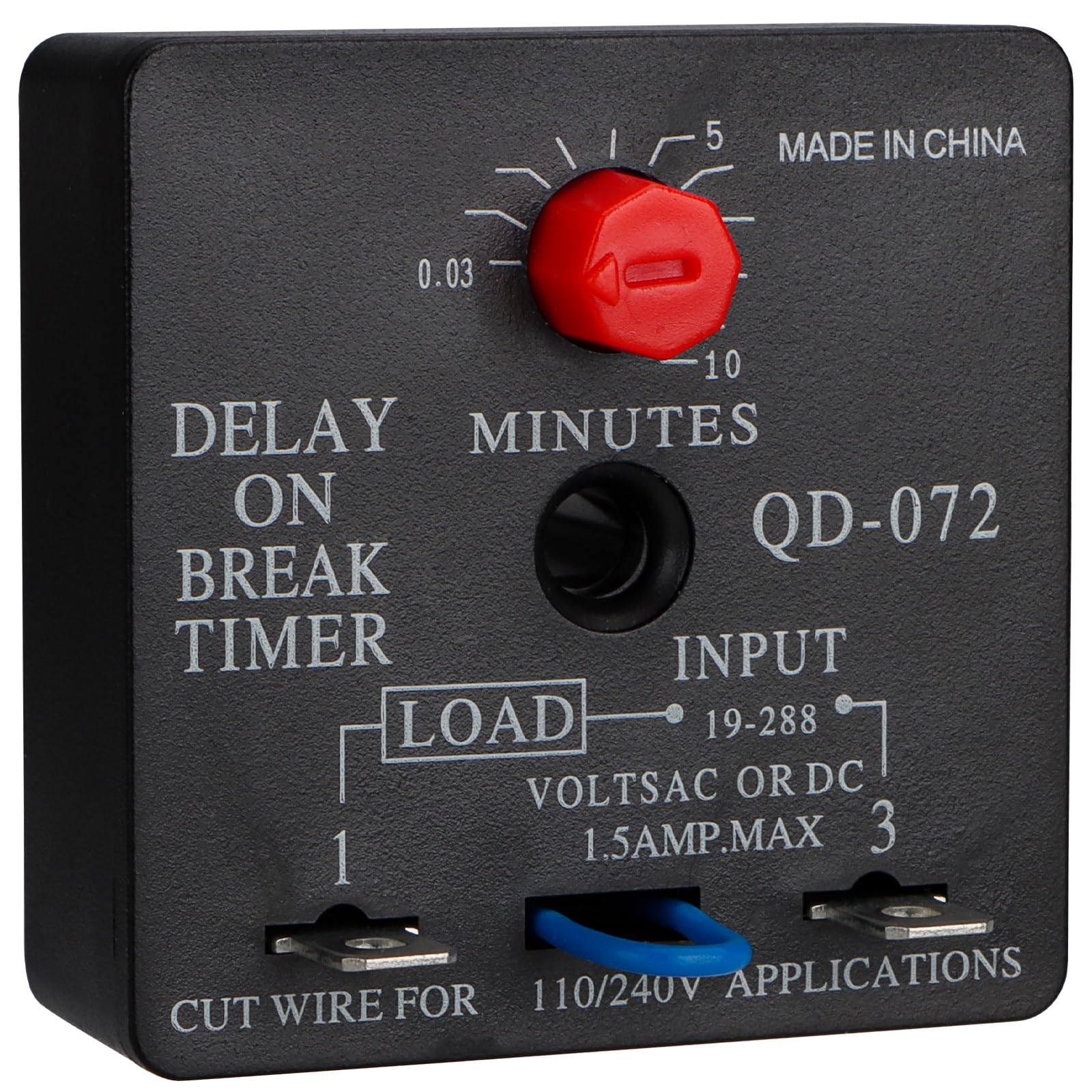

Adjustable Delay On Break Timer QD-072 (0.03-10 Min) 18-240V AC/DC - Perfect for Industrial Automation & HVAC Control Systems
$6.36
$8.49
-25% OFF
Free shipping on all orders over $50
7-15 days international
29 people viewing this product right now!
30-day free returns
Secure checkout
96994147
Guranteed safe checkout
Description
Mode of operation When the input power is turned on, the load is powered on and running. When the thermostat is disconnected or there is power loss, the load is powered off and the timer starts to delay. The compressor does not work during the entire delay process. QD-072 can protect the thermostat from damage when the power is interrupted, and it can also play a protective role when there is only a little bit of current.
Features
Adjustable Time delays from 0.03 to 10 min
Input Voltage 18-240VAC / VDC
Line Frequency 50/60Hz
Output Ratings 40mA~1.5A; Inrush Output Ratings 15 Amps
Package 1 x Delay On Break Timer
