Description

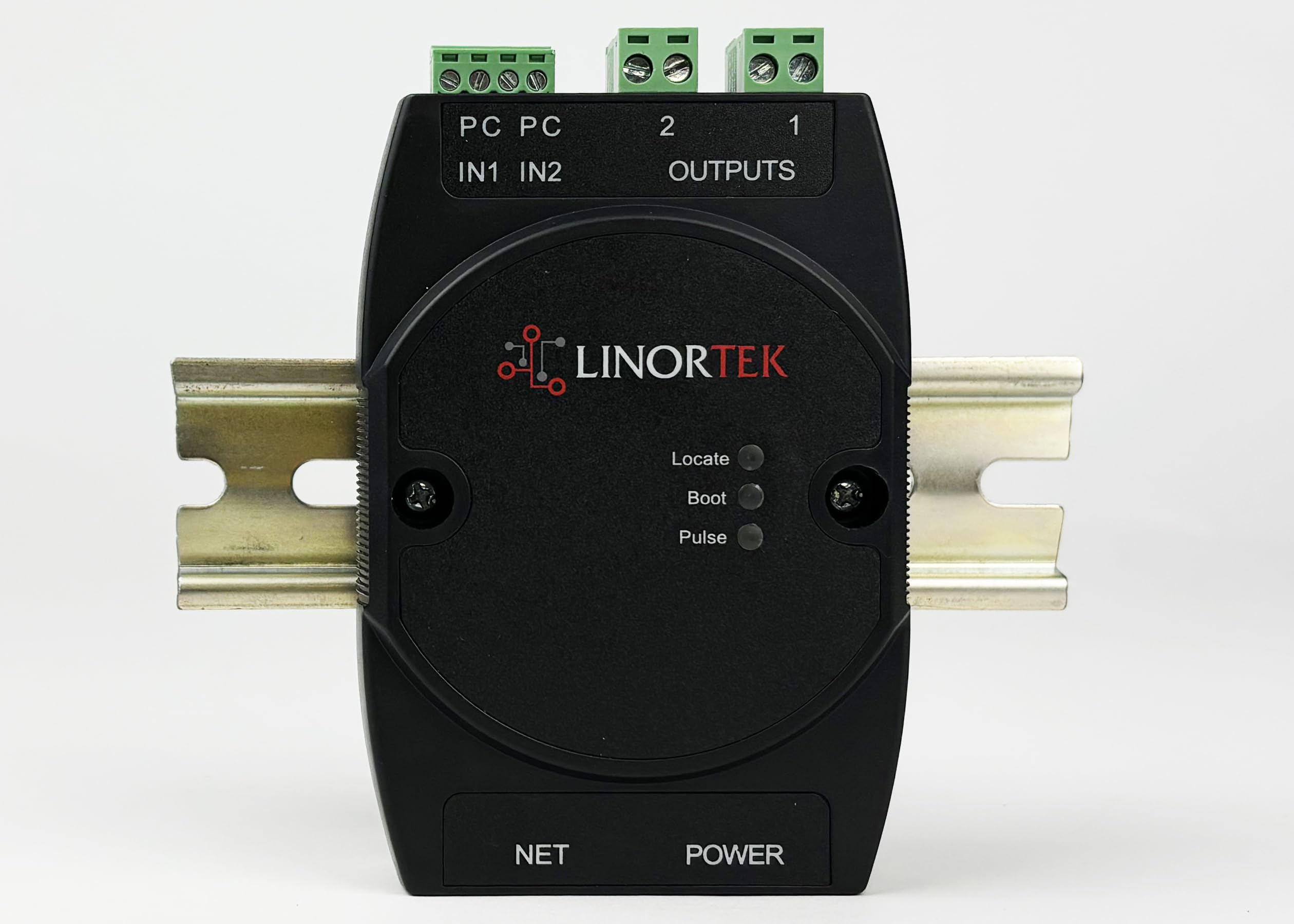

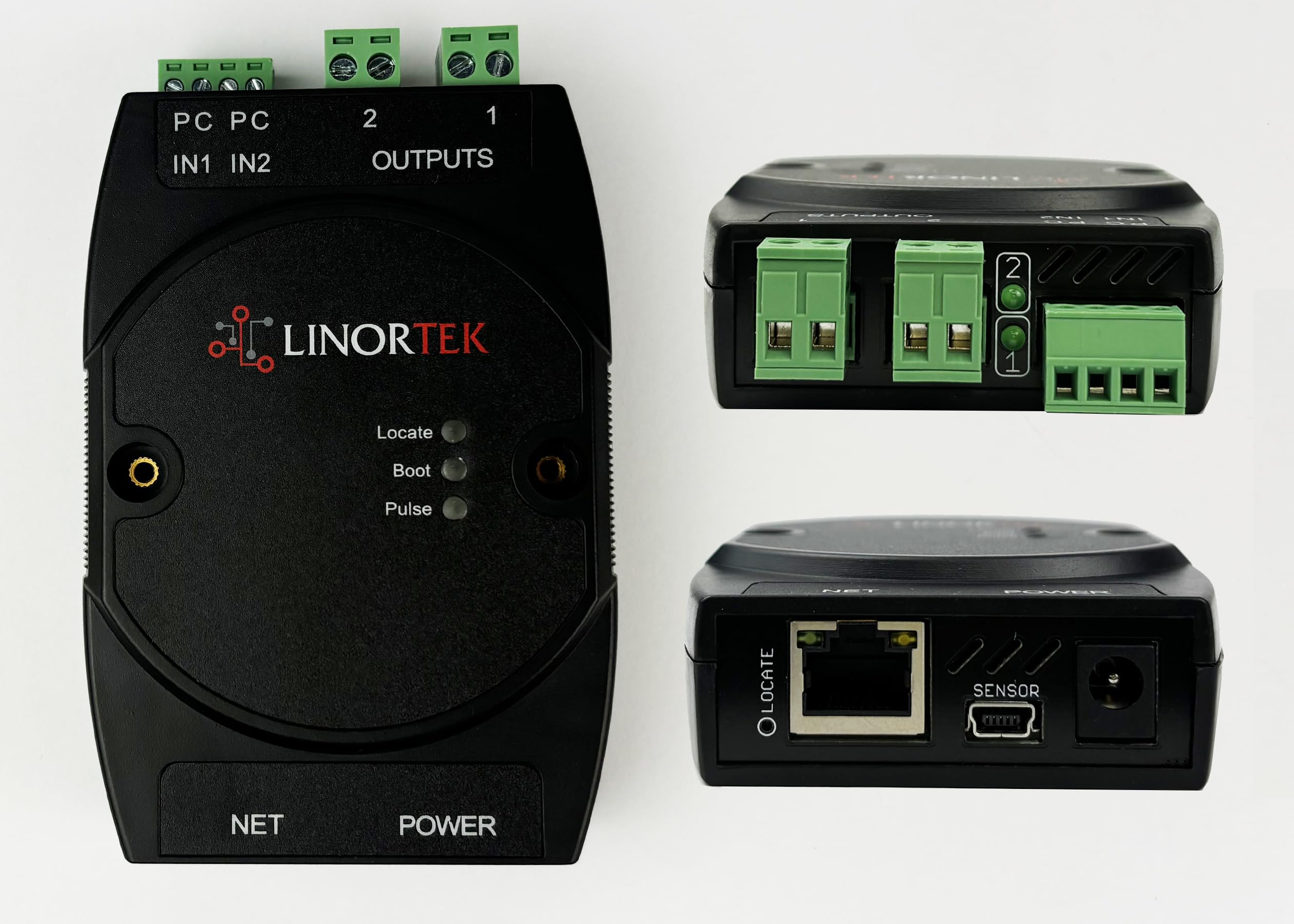

The netbell-2 is housed in a din-rail mountable enclosure. With the 2 relays you can control 2 line voltage bell timer devices (110v, 10a). With the digital inputs you have the ability to wire an external switch for ringing bells manually, or turn on/off lights, machines, or security devices. With the easy-to-use bell schedule software, users can easily add event schedules with different ringing duration for different event or import/export their existing data using a simple text format. It's ready to go out of the box and you need only connect the unit to power 12vdc or POE and an existing network with the provided cable; it can be connected anywhere on the network and does not require a direct connection to a pc. Scheduling and setup is accessed through any standard web browser. For anyone who has separate areas or multiple buildings where running additional wiring is not an option, but the locations are connected by a network, then we have a solution using the remote feature built into our products. We call it “networked bell system”. With our netbell product and our koda web controller you can setup a system over a network to ring multiple bells or horns on multiple locations. Technical specifications: 10m/100m rj45 internet interface with connection and activity LEDs. 2 1-form-a relays 110/220 10a. 2 optically isolated digital inputs, 12v 1ma or pull down switch selectable. Status LEDs (pulse, boot loader and locate). Ethernet boot loader (for server hardware code upgrade). POE or 12vdc @500ma (nominal). AC converter supplied, 100-240vac50/60 Hz. 1 meter cat5 cable supplied. On board temperature sensor and input voltage sensor. Designed, developed and made in USA. Dimensions 70mm x 100mm x 25mm. Supported protocols: http/SMTP/SNTP.
Features
COMPACT AND SELF-CONTAINED Network enabled, all-in-one automatic bell controller with the hardware and software you need to control your timed alert system. No extra software or designated computer required. Add schedules from any computer on your network without having to go through the firewall

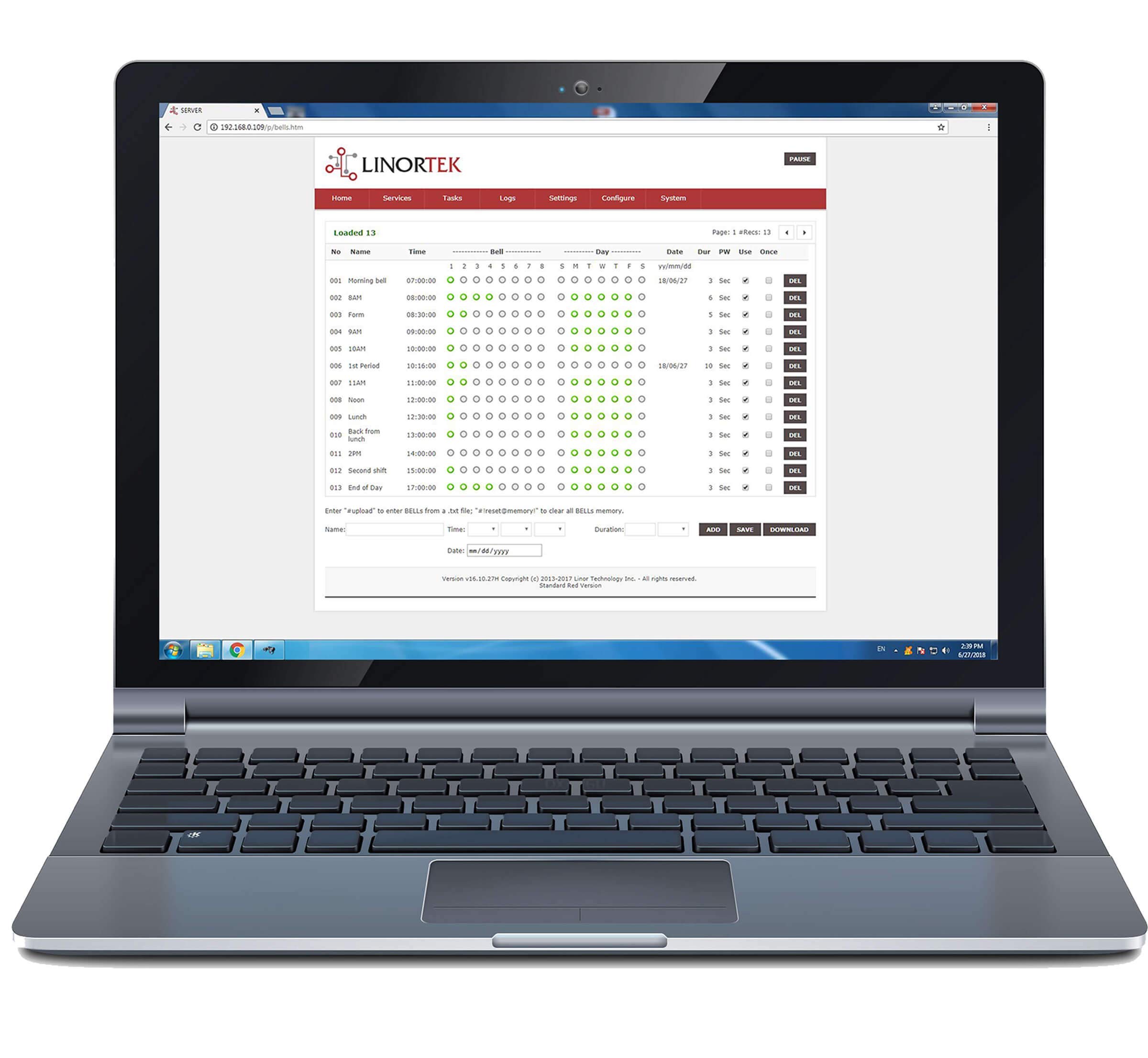

FULLY PROGRAMMABLE Up to 500 programmable event schedules, each event can be set to a different duration for different break time. Create different schedules for different events in a txt format and switch the schedules as needed with a few clicks
EASY TO USE With the built-in remote function and BellScheduler desk app, you can manage & schedule multiple Netbell devices whether in a single building, multiple buildings or multiple locations from one easy-to-use interface, without the need of logging in to each device or hard-wiring the bells to a central control station, making the management of your bell systems incredibly easy

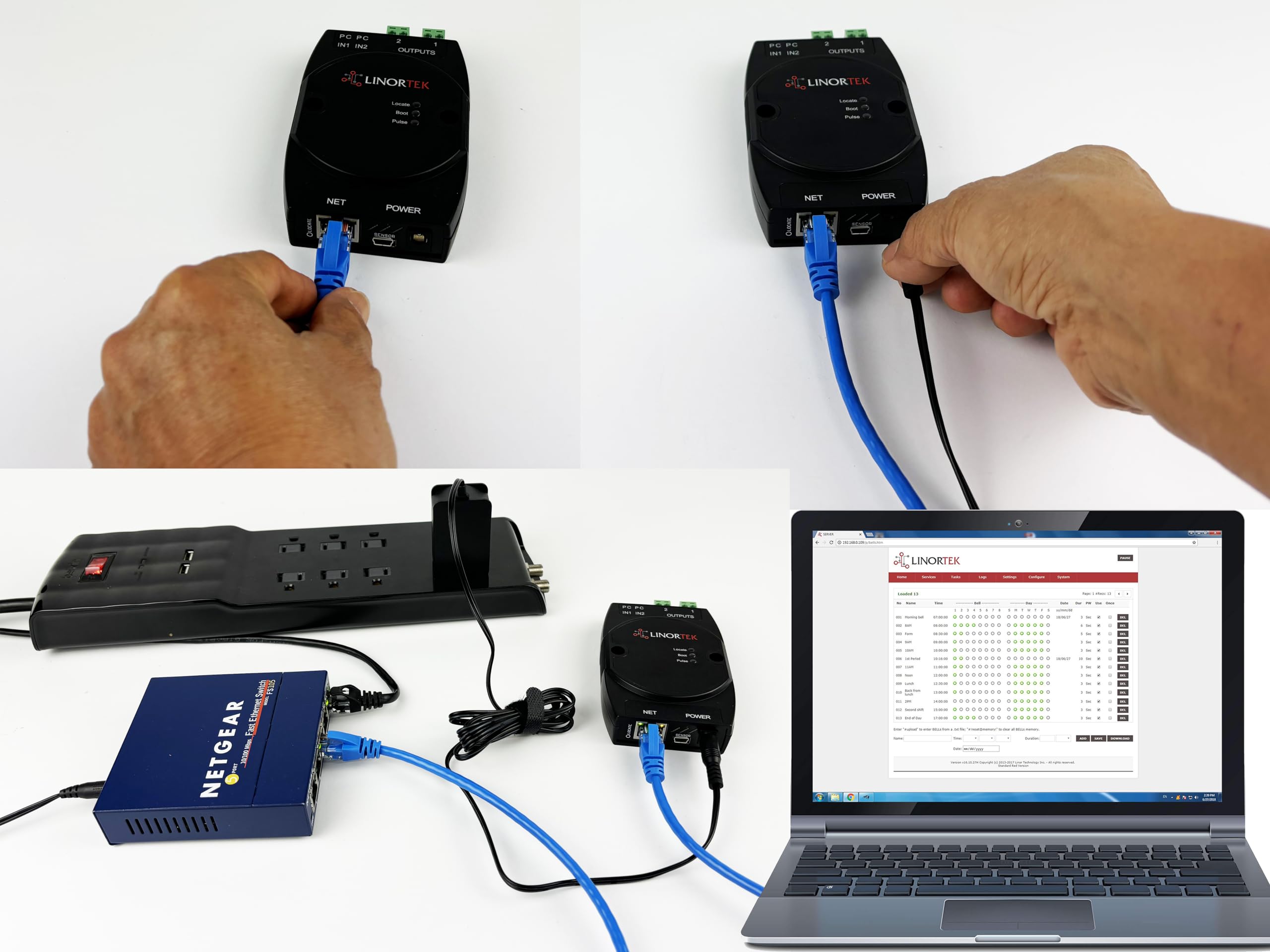

EASY TO INSTALL Use as either a network or a standalone device, connect to network or directly to computer for initial setup then it will work as scheduled. With the built-in Real Time Clock and user settable NTP server, you can accurate control of when the bells ring (HHMMSS, MM/DD/YYYY, SUNDAY-SATURDAY) or pull the time from your existing NTP server
EASY TO EXPAND Each Netbell device is a web SERVER, it’s an independent system which includes its own hardware and software, you can add more units as your business growing without significant infrastructure changes
